Glass Body Electrode (Gel filled) This is 3-point pH Electrode, there is a special membrane glass & reference system that provides faster response, stable & reproducible result.
Benefits :
Gel filled glass Electrode.
Stable reading to 0.02 pH in less than 15 seconds.
Quick response & Low impedance.
Membrane glass is available in Brown.
The electrode is equipped with a single/Double junction.
The electrode diaphragm is equipped with a single ceramic junction.
Built in Temp. Comp. (pt100/ pt1000/ NTC).
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
Glass Body Electrode (KCL filled) This is 5-point pH Electrode, there is a special membrane glass & reference system that provides faster response, superior measurement stability & reproducible result.
Benefits :
KCL filled glass Electrode.
Stable reading to 0.02 pH in less than 15 seconds.
pH Electrode with special membrane glass suitable for 5-point calibration including
Low (1.68) & High (12.45) pH value buffers.
Membrane glass is green which covers full range i.e. 1.68 to 12.45 pH (Green membrane glass for fast response).
Quick response & Low impedance.
The electrode is equipped with a single/Double junction.
The electrode diaphragm is equipped with a single ceramic junction.
Built in Temp. Comp. (pt100/ pt1000/ NTC) optional.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
Non Aqueous, Glass body Electrode Non-Aqueous pH Electrode, a versatile refillable, PH electrode ideal for measuring the pH of Non aqueous solutions like Oil Emulsions / Organic Solutions. Liquids can serve as solvents to dissolve solutes (i.e., solid, liquid or gaseous) to form solutions. The most common solvent is water. Solvents other than water are called non-aqueous solvents. Some examples of non-aqueous solvents are hexane, alcohol, oil, etc. It is a refillable, Single/double-junction, glass-body, combination pH electrode. The connector is BNC, compatible with any pH meter that has BNC input. The applications include testing of non-aqueous solvents, viscous solutions, and samples containing non-aqueous solvent (e.g., cosmetics, paints, etc.)
Benefits :
Non-Aqueous Measurement Applications.
Very accurate and repeatable readings.
Membrane glass with low impedance & a special electrolyte gives a solid performance.
The electrode is equipped with a single/Double junction.
The ceramic reference junction provides a good contact with the sample to provide excellent stability
Built in Temp. Comp. (pt100/ pt1000/ NTC) optional.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
This electrode can be used for variety of applications Oil Emulsions / Organic Solutions.
Glass Body Electrode (KCL filled) This pH electrode is designed for general purpose pH testing applications. It is available in Glass body combination. A highly accurate 5-point Calibration, KCl filled, Glass body Electrode with Ground Glass Junction. It is specially designed for clinical and pharmaceutical industries.
Benefits :
KCL filled glass Electrode
More stable & accurate reading up to 0.02 pH in 5 pH buffers 1.68, 4, 7, 10.01 & 12.45.
Very accurate and repeatable readings.
Quick response & low impedance.
The electrode is equipped with a single/Double junction.
The electrode diaphragm is equipped with ground glass junctions.
Built in Temp. Comp. (pt100/ pt1000/ NTC) optional.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
This electrode can be used for large variety of applications.
Supplied with storage bottle for longer life.

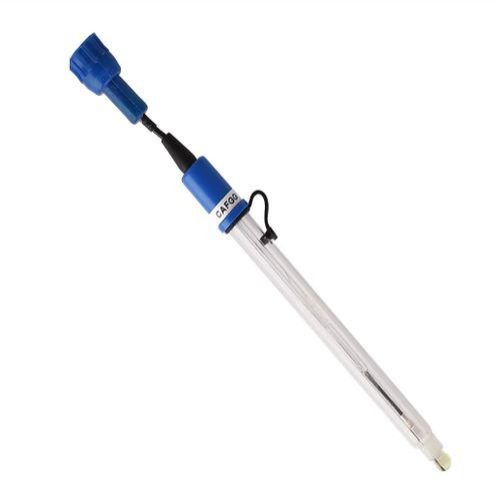

CAFGG electrodes are specially designed for clinical and pharmaceutical industries.
Glass Body Electrode (Gel filled) This is 3-point pH Electrode, there is a special membrane glass & reference system that provides faster response, superior measurement stability & reproducible result.
Benefits :
Gel filled glass Electrode.
Stable reading.
Quick response & Low impedance.
Membrane glass is available in Blue / Green / Brown.
The electrode is equipped with a single/Double junction.
The electrode diaphragm is equipped with 1/2/3 ceramic junction.
Built in Temp. Comp. (pt100/ pt1000/ NTC).
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
This electrode can be used for large variety of applications like swimming pools / Aquarium / RO / Drinking water.
Suitable for accurate pH measurement in NMR cells Micro pH electrode is refillable with special thin glass tube sizes, suitable for small & very small volume liquid measurements.Microelectrodes are bio potential electrodes with an ultrafine tapered tip that can be inserted into individual biological cells. The volume of sample must be enough to cover the glass membrane and liquid junction of the pH electrode during measurement. Micro pH electrodes are constructed with thick glass membrane, that is highly resistant to impact and chemicals.
Benefits :
Very small quantity can be analyse (In volume 0.2 mili liter).
Fits test tubes and small containers.
This refillable semi-microelectrode features fast, accurate, and stable pH readings.
The electrode is equipped with a single/Double junction.
The ceramic reference junction provides a good contact with the sample to provide excellent stability.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
Supplied with storage bottle for longer life.
Recommend for clinical, pharmaceutical, and food labs, wherever sample size is a constraint.
Plastic Body Electrode (KCL filled) This is 5-point pH Electrode, there is a special membrane glass & reference system that provides faster response, superior measurement stability & reproducible result.
Benefits :
KCL filled unbreakable Electrode.
Stable reading to 0.02 pH in less than 15 seconds.
pH Electrode with special membrane glass suitable for 5-point calibration including
Low (1.68) & High (12.45) pH value buffers.
Membrane glass is green which covers full range i.e. 1.68 to 12.45 pH (Green membrane glass for fast response).
Quick response & Low impedance.
The electrode is equipped with a single/Double junction.
The electrode diaphragm is equipped with two ceramic junctions.
Built in Temp. Comp. (pt100/ pt1000/ NTC).
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
Plastic Body Electrode (Gel filled) This is 3-point pH Electrode, there is a special membrane glass & reference system that provides faster response, superior measurement stability & reproducible result.
Benefits :
Gel filled unbreakable Electrode.
Stable reading.
Quick response & Low impedance.
The electrode is equipped with a single/Double junction.
The electrode diaphragm is equipped with a single ceramic junction.
Built in Temp. Comp. (pt100/ pt1000/ NTC).
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
This electrode can be used for large variety of applications.
Unbreakable, (Gel filled) This probe has a flat surface and is commonly used in testing surface measurements such as cheese, meats, small liquid samples, paper, soil, skin, cloth, leather and leaves. It features a single/double-junction electrode for general-purpose applications. The junction is sealed for low maintenance use and is easy to clean.
Benefits :
pH can be checked at Moist Flat Surface.
Flat Tip for Surface Measurements.
pH can be checked in patty dish.
the probe’s flat tip makes it ideal for pH measurements of skin, paper, food and various surfaces.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
Plastic Body, (Gel filled) The pH soil electrode measures the pH value, one of the most relevant information for soil properties and performance. The pH soil electrode is a glass body, refillable, single/double junction pH electrode. The conical shaped tip design allows for penetration into solids, semi solids and emulsions. This is ideal for the direct measurement of pH in soils and soil slurries.
Benefits :
pH of Moist Soil can be tested directly.
pH Sensor Glass (Conical) can be inserted into semi solid samples like Cheese, Paneer directly and can check pH.
Suitable for both field and laboratory applications
Low maintenance, Long-life and durable.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
ABS/Plastic/SS304 Body (Knife), Gel filled This pH electrode measures the pH value of fruits, vegetables, cheese, meat & fish, one of the most relevant information for solids and semi solids properties and performance. This pH electrode is a ABS/Plastic/SS304 body(Knife), single/double junction combined pH electrode. The conical shaped tip design allows for penetration into solids, semi solids and emulsions. This is ideal for the direct measurement of pH in solids and semi solids application.
Benefits :
pH of solids and semi solids (measure inside sample / puncture) can be tested directly.
pH Sensor Glass (Conical) can be inserted into semi solid samples like Cheese, Paneer directly and can check pH.
Membrane glass is available in Green.
Suitable for both field and laboratory applications
Low maintenance, Long-life and durable.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
Needle-type pH electrode can be used to pierce and penetrate solid samples, such as meat, fruits, and food samples during measurement.
CASM (Glass Body, KCl filled) Semi-Micro pH electrode is refillable with special thin glass tube sizes, suitable for very small volume liquid measurements. Semi-Micro glass body pH electrodes provide superior chemical resistance and can withstand high temperature extremes. Semi-micro electrodes are durable and provide reliable and accurate measurements of routine samples.
Benefits :
Very small quantity can be analyse (In volume 0.2 mili liter).
Fits test tubes and small containers.
This refillable semi-microelectrode features fast, accurate, and stable pH readings.
The electrode is equipped with a single/Double junction.
The ceramic reference junction provides a good contact with the sample to provide excellent stability.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
Supplied with storage bottle for longer life.
Recommend for clinical, pharmaceutical, and food labs, wherever sample size is a constraint.
Glass Body (Refillable KCl filled) TOSHCON-TOSHNIWAL produces high quality Laboratory sensors for redox potential measurement for varied applications for Swimming Pools/ Drinking water, Water disinfection and many others. Invariably the membrane Glass is called as the sensing tip of pH Sensor, but in Redox Sensors instead of membrane glass the sensing tip is Platinum or Gold. The shapes & costs vary but the measurement technique remains the same. The other part of the reference Sensor still remains similar in both pH & Redox and is produced with different Junctions and Electrolytes, depending on the application.
Benefits :
Can be used for Titration.
Combination KCL refillable electrode.
ORPs are affected by temperature and must be measured at a constant temperature (for example, at 25ºC).
The electrode is equipped with a single/Double junction.
The ceramic reference junction provides a good contact with the sample to provide excellent stability.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
Glass Body (Gel filled) TOSHCON-TOSHNIWAL produces high quality Laboratory sensors for redox potential measurement for varied applications for Swimming Pools/ Drinking water, Water disinfection and many others. Oxidation-reduction potential (ORP) is an indicator of the oxidizing or reducing ability of a solution, and is measured by methods similar to those for measuring pH. ORPs are measured by using a pH meter with a millivolt meter function in combination with a metal electrode (Platinum Spiral) and a reference electrode.
Benefits :
Can be used for Titration.
Combination Gel filled electrode.
ORPs are affected by temperature and must be measured at a constant temperature (for example, at 25ºC).
The Sensor uses HGel+ formulations to give the sensor trouble free working life along with becoming resistant to pressure and temperature. changes.
The electrode is equipped with a single/Double junction.
The ceramic reference junction provides a good contact with the sample to provide excellent stability.
The sensor is housed in chemically resistant Polycarbonate (Plastic) with a Dome shaped membrane bulb which is protecting by electrode housing.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
Unbreakable Flat Surface (Gel filled) Electrode TOSHCON-TOSHNIWAL produces high quality Laboratory sensors for redox potential measurement for varied applications for Swimming Pools/ Drinking water, Water disinfection and many others. This probe has a flat surface and is commonly used in testing surface measurements such as cheese, meats, small liquid samples, paper, soil, skin, cloth, leather and leaves. It features a double-junction electrode for Laboratory and general-purpose applications. The junction is sealed for low maintenance use and is easy to clean.
Benefits :
Can be used for Titration.
Unbreakable Gel filled electrode.
ORPs are affected by temperature and must be measured at a constant temperature (for example, at 25ºC).
The electrode is equipped with a Double junction.
The Teflon, additional ceramic reference junction provides a good contact with the sample to provide excellent stability.
Shape of membranes available with platinum disc.
Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
Suitable/ compatible with mostly all make analysers.
Ion-selective buffers play a crucial role in analytical chemistry, particularly in ion-selective electrode (ISE) measurements. These buffers help maintain a stable environment for accurate and reliable ion concentration measurements.Ion-selective buffers are available for a variety of ions, depending on the specific needs of the experiment or application. Ion-selective electrodes, which are a type of ion-selective sensor, are used in electrochemical sensors for detecting specific ions. This has applications in environmental monitoring, medical devices, and industrial processes. Ion-selective buffers play a crucial role in analytical chemistry, particularly in ion-selective electrode (ISE) measurements. These buffers help maintain a stable environment for accurate and reliable ion concentration measurements. Glass Body These Glass-body, Conductivity electrode/cell is designed to conductivity testing application for laboratory and field use. Suitable for tap water and quality control check in water purification plant. Each type of conductivity cell has two models with k=0.1 cm-1 and k=1.0 cm-1 cell constants. When selecting a conductivity cell, check the expected conductivity of the sample and then look at the cell constants of conductivity cells. Choose a conductivity cell that covers the expected sample conductivity. The higher the conductivity value of sample, the higher the cell constant required. A conductivity cell with k=1.0 cm-1 cell constant is the most commonly used because it measures low to high conductivity.
Benefits :
Conductivity Cell covers wide range uS to mS.
Stable & quick response.
Intended for laboratory use.
Glass-body conductivity cells are chemical-resistant. They can be used in aqueous samples as well as in samples containing organic solvents.
Typically, a low conductivity solution is measured with a low cell having a k=0.1 cm-1 cell constant to prevent absorption of carbon dioxide (CO2) from air, which can affect the conductivity value.
A high conductivity solution is measured with a high cell having a k=1.0 cm-1 cell constant
Long life, easy cleaning to avoid contamination of the electrode to ensure correct results.
The same electrodes can also be used for measuring Resistivity/ TDS/ Salinity.
Available with BNC, 5 pin connectors & Banana Pin.
Suitable/ compatible with mostly all make Meters/ Analysers.
These Plastic-body, Conductivity electrode/cell is designed to conductivity testing application for laboratory and field use. Plastic-body conductivity cells are durable and rugged, making them ideal for field measurements. Each type of conductivity cell has two models with k= 0.1 cm-1 and k=1.0 cm-1 cell constants. When selecting a conductivity cell, check the expected conductivity of the sample and then look at the cell constants of conductivity cells. Choose a conductivity cell that covers the expected sample conductivity. The higher the conductivity value of sample, the higher the cell constant required. A conductivity cell with k=1.0 cm-1 cell constant is the most commonly used because it measures low to high conductivity.
Benefits :
Conductivity Cell covers wide range uS to mS.
Stable & quick response.
Intended for laboratory and field use.
Plastic-body conductivity cells are durable and rugged, making them ideal for field measurements.
Typically, a low conductivity solution is measured with a low cell having a k=0.1 cm-1 cell constant to prevent absorption of carbon dioxide (CO2) from air, which can affect the conductivity value.
A high conductivity solution is measured with a high cell having a k=1.0 cm-1 cell constant
Long life, easy cleaning to avoid contamination of the electrode to ensure correct results.
Available with BNC, Lugs Connector.
Suitable/ compatible with mostly all make Meters/ Analysers.
