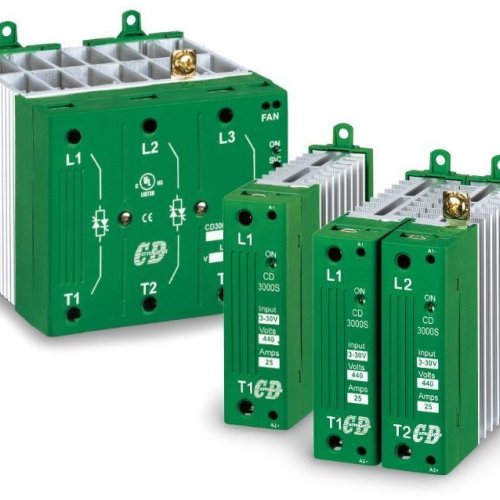

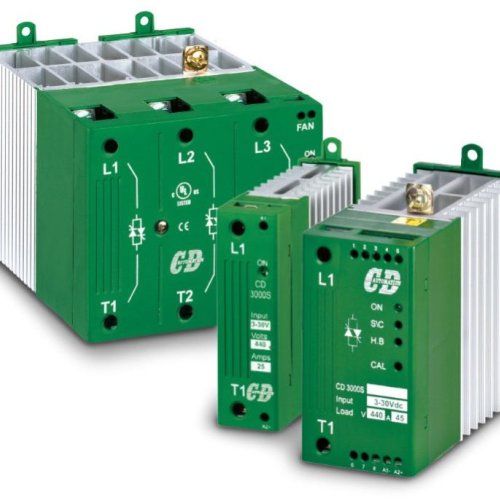

Leading Manufacturers, Exporters and Wholesaler of CD3000S 1PH Power Controller, CD3000S 2PH Power Controller, CD3000S 3PH Power Controller, Revex 1PH Power Controller, Revex 2PH Power Controller, Revex 3PH Power Controller, Revo 2PH Power Controller, Revo C 2PH Universal Scr Power Controller, Revo C 3PH Universal Scr Power Controller, Revo C Universal Scr Power Controller, Revo I 3PH Power Controller, Revo N Electric Heater Power Controller, Revo Pb Three One Phase Scr Power Controller, Revo PC Three One Phase Scr Power Controller, Revo Pn 3PH Electric Heater Power Controller, Revo Pn Electric Heater Power Controller, Revo Rt 3 Zone PID Power Controller and Revo TH Compact Power Controller from Ajmer.

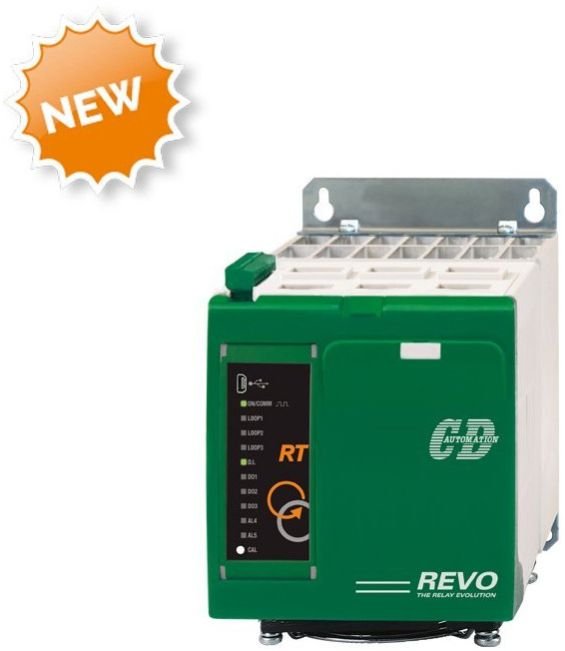

REVEX 1PH is a fully configurable single phase power controller. If you don’t need features, delete them, so you’ll get an immediate cut on the cost of the unit. Input signal in digital mode, no link jumpers inside
Firing mode: Single cycle, Half cycle, Burst, Phase Angle, Delayed Triggering, different types of adjustable ramp
Control Mode (V, V2, I, I2, VxI)
Communication RS485 with Modbus® protocol std.
Two Analog input
Two Digital input
USB port to program REVEX, should you ever need to re-program from your ordered configuration
With the units already programmed you can simply switch On and Go
Save money and time straight out the box without the need to read a long manual
Save money with REVEX and only pay for functionality you need

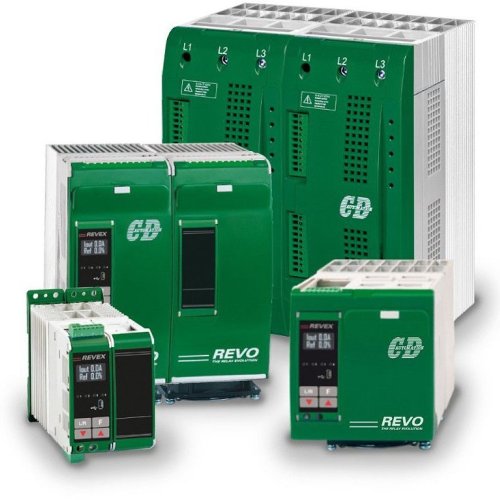

REVEX 2PH is a fully configurable three phases power controller. If you don’t need features, delete them, so you’ll get an immediate cut on the cost of the unit.
Input signal in digital mode, no link jumpers inside
Firing mode: Burst Firing, Zero Crossing
Voltage, Current and Power or V2 and I2
Communication RS485 with Modbus® protocol std.
Two Analog input
Two Digital input
USB port to program REVEX, should you ever need to re-program from your ordered configuration
With the units already programmed you can simply switch On and Go
Save money and time straight out the box without the need to read a long manual
Save money with REVEX and only pay for functionality you need
REVEX 3PH is a fully configurable three phases power controller. If you don’t need features, delete them, so you’ll get an immediate cut on the cost of the unit.
Input signal in digital mode, no link jumpers inside
Firing mode: Burst Firing, Zero Crossing
Control Mode: Voltage, Current and Power or V2 and I2 with additional Transfer to VxI
Communication RS485 with Modbus® protocol std.
Two Analog input
Two Digital input
USB port to program REVEX, should you ever need to re-program from your ordered configuration
With the units already programmed you can simply switch On and Go
Save money and time straight out the box without the need to read a long manual
Save money with REVEX and only pay for functionality you need
Toshcon CD REVO I – 2PH is a Full digital and Burst Fired Thyristor unit based on a very powerful dedicated micro configurable via serial communication port for all inputs, control modes with Burst Firing (3-255 Burst) or Zero Cross over firing
Micro USB / RS485 to configure the Thyristor, software free available
Suitable to drive resistive & transformer coupled loads
Universal Input Signal with automatic zero / span calibration
Number of Burst, customer configurable via RS485 comm. as Burst Firing
2nd Analogue Input for external feedback / Alternate Set point
Universal Control mode V/ V2/ I/ I2/ Vxl/ external feedback
Soft Start facility as standard & can be used in additional to Burst Firing
Unbalanced load, Heater Break, SCR short circuit & Heat Sink over temp. & various other alarm
REVO C is an high reliability Universal SCR Power Controller that has an advanced microprocessor that makes it universal and fully configurable via software. Particular attention has been gived to the Connectivity with the most popular Field Bus.
REVO Connect is fully Software configurable.
Current Rating 30 to 2100A for 1 Phase unit.
Voltage Range 480V, 600V and 690V.
CE-EMC Listed, EAC Listed, cUL 508 Listed up to 700A, UL listed from 800A to 2100A.
Universal Input: The std analog inputs 4:20mA and 0:10V and SSR Configurable via Software.
All types of firing mode Half Cycle, Single Cycle, Burst Firing, Delayed Triggering Phase Angle and Soft Start.
OLED display on front Unit: This display give better operator interface and delivers use-friendly intuitive messages.
Universal Control Mode: Current, Voltage, Power, Open Loop.
Integrated Data Logging with Storage:xxGB SD Memory Card with programmable Logging Intervals.
High precision measurement (True RMS Value for V,I and VxI) ≤1%
Integrate Fuse: This reduce labor and space and gives the possibility to use a part of fan cooling air to reduce the temperature of semiconductor fuses and reduce the mounting space inside the cabinet.
Greater protection in case of Short Circuit: 100 KA Short Circuit Current rating (SCCR) up to 600V.
Generous sizing of Thyristors and Thermal Parts using hight efficency Heatsink.
Wide range of communication protocols: Control board has been engineered to plug on it different Field Bus boards.
The USB port on the front of the unit for configuration allows the REVO C to be configured easily and safely, as the unit is powered by the USB port itself (no load and auxiliary voltage required).
Energy Counter Totalizer: This is available as an option and can be useful to define the cost per hour of heating system.
Fully compatible with REVO M and REVO CL serie: This is an important Feature because allows to substitute old REVO with REVO C The number of terminal blocks is the same to facilitate the substitution.
Integrate Load Analyzer: This is an important Feature that can help the operator for troubleshooting problems. This is a Real Wave Form Load Monitoring.
It is an high reliability Universal SCR Power Controller that has an advanced microprocessor that makes it universal and fully configurable via software. Particular attention has been gived to the Connectivity with the most popular Field Bus.
REVO Connect is fully Software configurable.
Current Rating 30 to 2100A for 3 Phase unit.
Voltage Range 480V, 600V and 690V.
CE-EMC Listed, EAC Listed, cUL 508 Listed up to 700A, UL Listed from 800A to 2100A.
Universal Input: The std analog inputs 4:20mA and 0:10V and SSR Configurable via Software.
All types of firing mode Half Cycle, Single Cycle, Burst Firing, Delayed Triggering Phase Angle and Soft Start.
OLED display on front Unit: This display give better operator interface and delivers use-friendly intuitive messages.
Universal Control Mode: Current, Voltage, Power, Open Loop.
Integrated Data Logging with Storage:xxGB SD Memory Card with programmable Logging Intervals.
High precision measurement (True RMS Value for V,I and VxI) ≤1%
Integrate Fuse: This reduce labor and space and gives the possibility to use a part of fan cooling air to reduce the temperature of semiconductor fuses and reduce the mounting space inside the cabinet.
Greater protection in case of Short Circuit: 100 KA Short Circuit Current rating (SCCR) up to 600V.
Generous sizing of Thyristors and Thermal Parts using high efficency Heatsink.
Wide range of communication protocols: Control board has been engineered to plug on it different Field Bus boards.
The USB port on the front of the unit for configuration allows the REVO C to be configured easily and safely, as the unit is powered by the USB port itself (no load and auxiliary voltage required).
Energy Counter Totalizer: This is available as an option and can be useful to define the cost per hour of heating system.
Fully compatible with REVO M and REVO CL serie: This is an important Feature because allows to substitute old REVO with REVO C The number of terminal blocks is the same to facilitate the substitution.
Integrate Load Analyzer: This is an important Feature that can help the operator for troubleshooting problems. This is a Real Wave Form Load Monitoring.
It is an high reliability Universal SCR Power Controller that has an advanced microprocessor that makes it universal and fully configurable via software. Particular attention has been gived to the Connectivity with the most popular Field Bus. REVO Connect is fully Software configurable.
Current Rating 30 to 2100A for 2 Phase unit.
Voltage Range 480V, 600V and 690V.
CE-EMC Listed, EAC Listed, cUL 508 Listed up to 700A, UL listed from 800A to 2100A.
Universal Input: The std analog inputs 4:20mA and 0:10V and SSR Configurable via Software.
All types of firing mode Half Cycle, Single Cycle, Burst Firing, Delayed Triggering Phase Angle and Soft Start.
OLED display on front Unit: This display give better operator interface and delivers use-friendly intuitive messages.
Universal Control Mode: Current, Voltage, Power, Open Loop.
Integrated Data Logging with Storage:xxGB SD Memory Card with programmable Logging Intervals.
High precision measurement (True RMS Value for V,I and VxI) ≤1%
Integrate Fuse: This reduce labor and space and gives the possibility to use a part of fan cooling air to reduce the temperature of semiconductor fuses and reduce the mounting space inside the cabinet.
Greater protection in case of Short Circuit: 100 KA Short Circuit Current rating (SCCR) up to 600V.
Generous sizing of Thyristors and Thermal Parts using hight efficency Heatsink.
Wide range of communication protocols: Control board has been engineered to plug on it different Field Bus boards.
The USB port on the front of the unit for configuration allows the REVO C to be configured easily and safely, as the unit is powered by the USB port itself (no load and auxiliary voltage required).
Energy Counter Totalizer: This is available as an option and can be useful to define the cost per hour of heating system.
Fully compatible with REVO M and REVO CL serie: This is an important Feature because allows to substitute old REVO with REVO C The number of terminal blocks is the same to facilitate the substitution.
Integrate Load Analyzer: This is an important Feature that can help the operator for troubleshooting problems. This is a Real Wave Form Load Monitoring.
Toshcon CD REVO I – 3PH is a Full digital and universal Thyristor unit based on a very powerful dedicated micro configurable via serial communication port for all inputs, control modes with Phase Angle or Burst Firing
Micro USB / RS485 to configure the Thyristor, software free available
Suitable to drive resistive, inductive, transformer and complex loads requiring current limit and power feedback
Universal Input Signal with automatic zero / span calibration
Universal firing modes, customer configurable via RS485 comm. as Burst Firing & Phase Angle
2nd Analogue Input for current limit facility or external feedback
Universal Control mode V/ V2/ I/ I2/ Vxl
Soft Start facility as standard & can be used in additional to Burst Firing
Unbalanced load, Heater Break & Heat Sink over temp. alarm
The REVO PN unit is designed to handle applications with multiple zones. This enhanced unit, thanks to a particular algorithm, minimizes your energy costs through the synchronization and the power limit for each zone. Revo PN keeps your instantaneous power within the limits of your electricity supply contract. This product meets modern connectivity needs REVO PN responds to the modern need for connectivity, data acquisition, monitoring and diagnostics of industrial plants through the most widely used field bus ’s the ideal complement to your PLC / MULTILOOP for improved power control.
REVO PB allows you to reduce the costs of electricity in industrial thermal processes.
REVO PB is able to optimize your industrial electric heating systems and make your production processes more flexible.
With traditional heating systems based on resistors and multi-zone power controllers, when you turn on the load you have a great impact on the peak absorption and when you modulate the load to keep the temperature constant you introduce a lot of disturbances into the electrical network.
This leads to possible malfunctions of the electronic control and penal systems by the energy supplier.
REVO PB power controllers are among the latest in the REVO family expanding REVO PN Family up to 90 A per channel.
This is the ideal unit in cases where it is necessary to control and optimize the power. Its optimization algorithm, like an orchestra conductor, distributes the required power of the individual zones while keeping the total power absorbed on the line as constant as possible.
The power fed into the grid without synchronization looks a lot like a raging river. REVO PB distributes the power demand of the individual zones, maintaining more regular absorption and feeding constant power to the grid, without continuous power peaks.
The REVO PC unit is designed to handle applications with many zones. This enhanced unit, thanks to a particular algorithm, minimize your energy costs through the sync function and the power limit for each zone.
Benefits Include :
Each loop’s process information is managed independently
Calculation of instant current and RMS Voltage, Current and Power
Calculation of load resistance with Heater Break Alarm
Modbus Master, Modbus slave, Profilbus DP, ProfiNet, Modbus/TCP, Ethernet IP and other
Elimination of power overshoot (see video)
Power factor close to one due to zero crossing firing
REVO-PC keeps your instantaneous power within the limit of your electricity supply contract
Prevents increases in energy supply tariffs imposed by your electricity supplier
Quick return on your investment.
This powerful unit with its high performance micro can drive simple thyristor unit REVO S. By using the REVO PC, simple thyristor units can be used reducing the overall financial investment. Simultaneous fast full wave control of
The REVO PN unit is designed to handle applications with multiple zones. This enhanced unit, thanks to a particular algorithm, minimizes your energy costs through the synchronization and the power limit for each zone. Revo PN keeps your instantaneous power within the limits of your electricity supply contract. This product meets modern connectivity needs REVO PN responds to the modern need for connectivity, data acquisition, monitoring and diagnostics of industrial plants through the most widely used field bus ’s the ideal complement to your PLC / MULTILOOP for improved power control.
The REVO RT is a compact power controller unit, which integrates inside a single phase static group for each loop for control of the electrical power.
Each unit manages 3 independent control loops. The unit can be purchased with the diagnostic functions for the load and for the SCRs. In this case there is a amperometric transformer for each channel.
Each power channel is always equipped with extra rapid fuses.
The power inside the unit, current transformer and extra rapid fuses in a single unit save a considerable space inside the panel and time for wiring.
Available in the following currents: 35, 50, 75 and 90A with maximum voltages 480V and 600V.
REVO RT two zones up to 35A is normally used for packaging machinery.
REVO RT three zones up to 50A is normally used for plastics machinery.
The power controllers REVO TH are one of the latest born into the REVO family.
Despite the formidable compactness, inside there are three independent SCR power units , which thanks to thyristor abundantly oversized in their junctions, they can manage currents up to 90A with a maximum voltage of 600V.
Using Modbus and/or the more common fieldbus, multiple units can be connected to each other and therefore the ideal application area is the control of heating elements on multiple zones such as the simultaneous control of multiple IR lamps.
