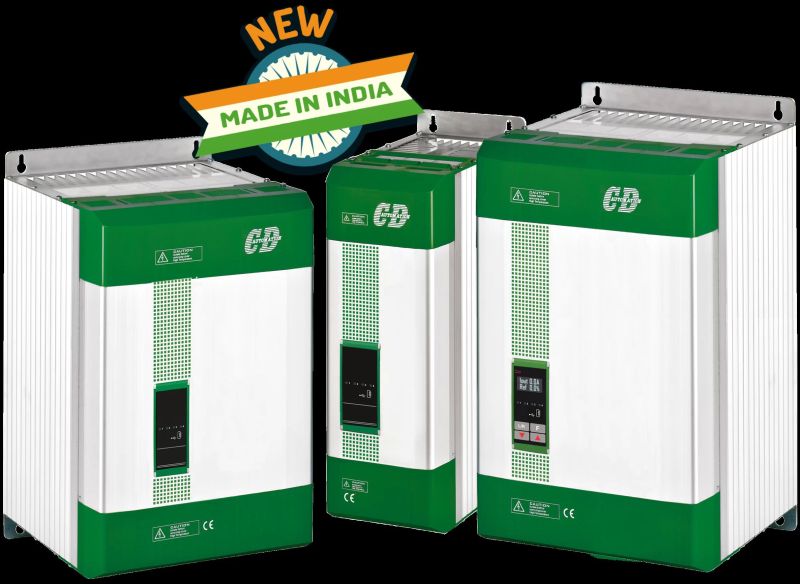

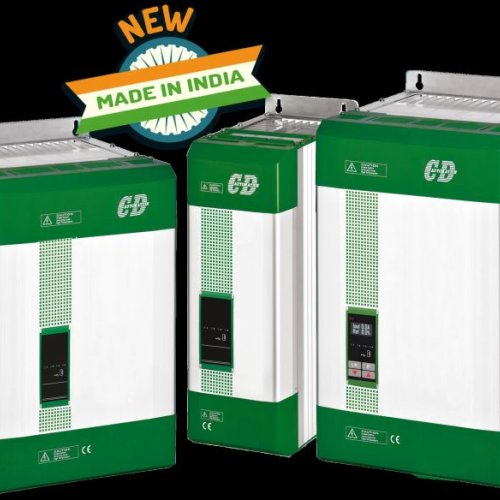

Revo I 3PH Power Controller

Details :

• Toshcon CD REVO I – 3PH is a Full digital and universal Thyristor unit based on a very powerful dedicated micro configurable via serial communication port for all inputs, control modes with Phase Angle or Burst Firing
• Micro USB / RS485 to configure the Thyristor, software free available
• Suitable to drive resistive, inductive, transformer and complex loads requiring current limit and power feedback
• Universal Input Signal with automatic zero / span calibration
• Universal firing modes, customer configurable via RS485 comm. as Burst Firing & Phase Angle
• 2nd Analogue Input for current limit facility or external feedback
• Universal Control mode V/ V2/ I/ I2/ Vxl
• Soft Start facility as standard & can be used in additional to Burst Firing
• Unbalanced load, Heater Break & Heat Sink over temp. alarm
• 4 LEDs on front for various indications
• Internal fuses are standard
• IP20 Protection
• Comply with CE EMC
• Front LED Display as option
