Static Relays

Details :

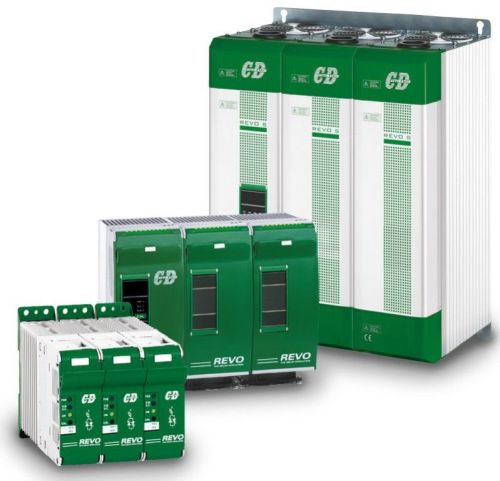

• Revo S 3PH is a three phases static relay suitable for driving loads with star connection with or without neutral and delta on three phases. The unit has been designed to save space and work.
• Current range – 30A, 35A, 40A, 60A, 75A, 90A, 120A, 150A, 180A, 210A, 300A, 350A, 400A, 450A, 500A, 800A
• Voltage Range 480V, 600V and 690V (starting from 60A)
• Fully isolated from the power
• Zero crossing firing mode (ZC) or Burst Firing (4, 8 or 16 cycles selectable)
• Logic input signal 4 to 30V DC typical (SSR) plus 4-20mA or 0-10V DC Linear input as an option
• Constant current drain, independent of supply voltage with SSR input
• Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
• Side by side mounting
• Special design Heatsink with high dissipation value
• IP20 protection
• Complies with EMC, EAC, cULus® 508 listed and cUL® listed up to 500A as an option. UL® for 800A as an option.

Details :

• Revo S 1PH is a single-phase static relay, complete with heatsink, specifically designed to save space and work.
• Current range – 30A, 35A, 40A, 60A, 90A, 120A, 150A, 180A, 210A, 300A, 400A, 500A, 600A, 700A, 800A
• Voltage range 480V, 600V and 690V (stating from 60A)
• Fully isolated from the power
• Zero crossing firing mode (ZC) or Burst Firing (4, 8 or 16 cycles selectable)
• Logic input signal 4 to 30V DC typical (SSR) plus 4-20mA or 0-10V DC Linear input as an option
• Constant current drain, independent of supply voltage with SSR input
• Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
• Side by side mounting
• Special design Heatsink with high dissipation value
• IP20 protection
• Complies with EMC, EAC, cULus® 508 and cUL® us listed up to 700A as an option.
• UL® listed for 800A units.
• Can be used in conjunction with REVO-PC to provide multi-zone control

Details :

• REVO S 2PH is a three phases static relay suitable for driving loads with star connection without neutral or delta, on two phases. The unit has been designed to save space and work.
• Current range – 30A, 35A, 40A, 60A, 75A, 90A, 120A, 150A, 180A, 210A, 300A, 400A, 450A, 500A, 600A, 700A, 800A
• Voltage range 480V, 600V and 690V (starting from 60A)
• Fully isolated from the power
• Zero crossing firing mode (ZC) or Burst Firing (4, 8 or 16 cycles selectable)
• Logic input signal 4 to 30Vdc typical (SSR) plus 4-20mA or 0-10Vdc Linear input as an option
• Constant current drain, independent of supply voltage with SSR input
• Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
• Side by side mounting
• Special design Heatsink with high dissipation value
• IP20 protection
• Complies with EMC, EAC, cULus® 508 Listed and cUL® listed up to 700A as an option. UL® listed for 800A as an option.

Details :

• REVO SSR Analog Solid State Relay is suitable for resistive and medium or long wave infrared loads
• Current range depend by the heatsink and ambient temperature. The rating included in the code number is the theoretical range of the junction, to understand the max current allowed you need to calculate it on this graph.
• An Heatsink is necessary for the correct work of the units, CDAutomation offer a wide range of heatsink to allow you to customize your unit.
• Supply voltage up to 480V or 600Vac as option
• Integrated Fuse and Fuse Holder as a standard.
• Fully isolated from the power
• Burst Firing (4, 8 or 16 cycles selectable)
• 4-20mA or 0-10Vdc Linear input as an option
• Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
• IP20 protection
• Complies with CE, EAC and cUL (pending)
• Heatsink are sold separately and are not included with this ordering code.

Details :

• REVO SSR Solid State Relay is suitable for resistive loads
• Current range depend by the heatsink and ambient temperature. The rating included in the code number is the teoretical range of the junction, to understand the max current allowed you need to calculate it on the graph.
• Supply voltage up to 480V or 600Vac as option
• Fully isolated from the power
• Zero crossing firing mode (ZC).
• Logic input signal 4 to 30Vdc typical (SSR).
• Constant current drain, independent of supply voltage with SSR input
• Integrated Fuse and Fuse Holder with SR1 Size.
• IP20 protection
• Complies with CE, EAC and cUL (pending).
• An Heatsink is necessary for the correct work of the units, CD Automation offer a wide range of heatsink to allow you to customize your unit.
• Heatsink are sold separately and are not included with this ordering code.

Details :

• This unit is available in three version
• Each unit includes Fuse and Fuse Holder, thyristor and heat sink with its own Firing circuit
• Zero Crossing Firing
• Max. voltage 240V or 480V AC as option
• Insulated input
• LED for On Off Status indication
• LED for fuse failure indication
• Plug in connection for auxiliary and power terminations
• Small dimensions Width: 36mm, Depth: 86mm, Height:121mm
• Din rail mounting or screw mounting
• Can be used in applications with many zones and low power as thermoforming, blow Moulding and Hot Runners.
