Leading Manufacturers, Exporters and Wholesaler of Cal 9500P PID Temperature Controller, Cal Max VU8 PID Temperature Controller, Cal Maxvu 16 PID Temperature Controller, N2300 PID Temperature Controller, P4100 PID Temperature Controller, P4170 PID Temperature Controller, P6100 PID Temperature Controller, P6170 PID Temperature Controller, P6700 PID Temperature Controller, P8100 PID Temperature Controller, P8170 PID Temperature Controller and Pro EC-44 PID Temperature Controller from Ajmer.

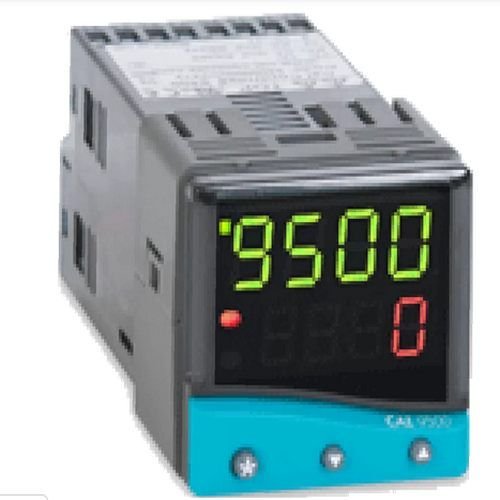

The CAL 9500P 1/16DIN programmable temperature controller has a programmer function with up to 31 programs (126 segments max). It is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications.
Features :
2 x 4 digit LED display with 2 output LEDs
Easy-to-use autotuning
Simple menu-driven configuration
Programmer function – 31 programs of up to 126 segments (fixed memory)

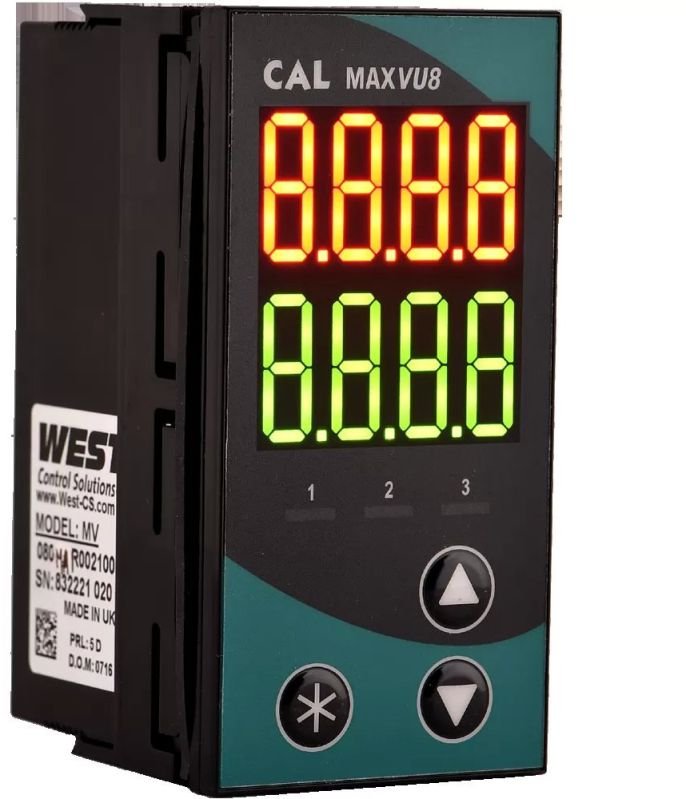

MAXVU has been designed to offer essential temperature control in a device that’s easy to install, fast to program and with improved display visibility. MAXVU provides an affordable solution for applications where primary temperature control functions such as heat only or heat/cool are needed, it offers a universal input and up to 3 outputs with a choice of either relay or SSR. Typical applications include packaging processes such as sealers and many more.
Features :
High visibility 18mm display digits (10.2mm lower display 1/16 DIN)
Quick setup menu with top 10 configuration parameters
Thermocouple, PT100 or linear DC sensor input
Up to 3 outputs, relay or SSR
2 process alarms, high/low, deviation or band.
3 button operation
2 x 4 digit display and 3 output status LEDs
Front panel configuration or via PC configuration software

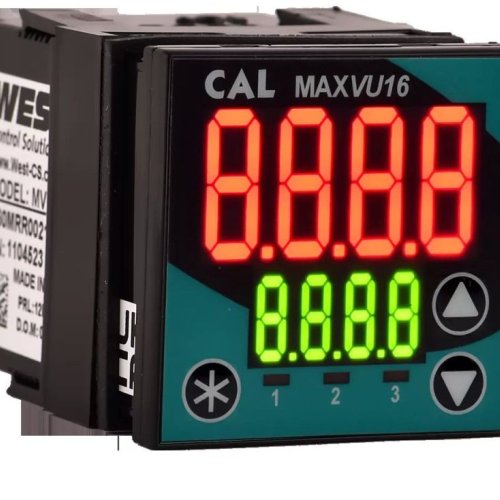

MAXVU has been designed to offer essential temperature control in a device that’s easy to install, fast to program and with improved display visibility. MAXVU provides an affordable solution for applications where primary temperature control functions such as heat only or heat/cool are needed, it offers a universal input and up to 3 outputs with a choice of either relay or SSR. Typical applications include packaging processes such as sealers and many more.
Features :
High visibility 18mm display digits (10.2mm lower display 1/16 DIN)
Quick setup menu with top 10 configuration parameters
Thermocouple, PT100 or linear DC sensor input
Up to 3 outputs, relay or SSR
2 process alarms, high/low, deviation or band.
3 button operation
2 x 4 digit display and 3 output status LEDs
Front panel configuration or via PC configuration software

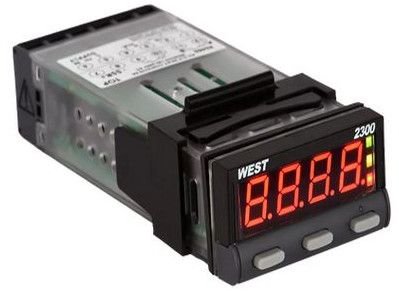

The West N2300 offers real flexibility as it can be used as a controller or an indicator. The instrument has the largest red or green digital display in a 1/32 DIN package. In addition to the red or green display the N2300 benefits from three additional multi-colour LEDs to indicate process, alarm and configuration statuses. The large, tactile rubberized keys provide a more practical human interface which is complemented with a specially developed hands-free PID tuning algorithm, Easy-Tune, which continuously monitors and improves control. Alternatively the instrument can be manually fine-tuned for a specific application. The N2300 indicator has up to two outputs (relay or solid state driver) for alarm. The controller version can have an additonal relay or RS232 serial communications.
Simple operating for easy setup
4 digit/ red/ green digital display
PID controller with manual override tune capability for specialised applications
Solid State & relay output for primary control & alarms

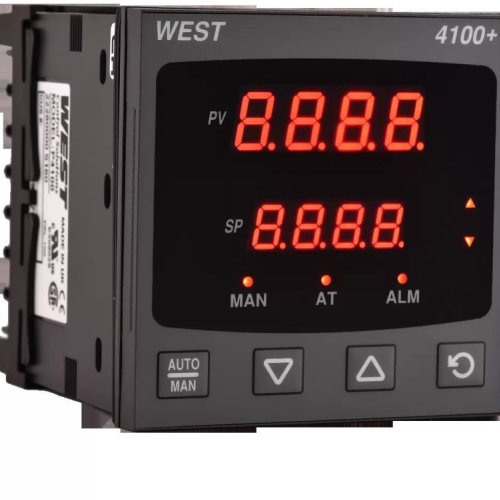

The West 4100+ is part of the Plus Series of controllers that take flexibility and ease of use to new levels. The product benefits from having more versatile features and user-friendly functionalities such as remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumperless and auto-hardware configuration, and 24VDC transmitter power supply. It has been designed to incorporate improvements, save users’ time (as much as 50% on product set-up), reduce inventory stock and virtually eliminate the likelihood of operator errors. The 4100+ provides a product which surpasses competitive offerings in terms of ease of use, delivery and value for money.
Features :
Plug-in output modules allow installing just the functions needed
Expanded user-selectable operator modes
User-selectable plug-and-play output cards
Process and loop alarms
Adjustable hysteresis
Dual setpoints with optional remote selection
Optional analogue Remote Setpoint Input
Improved Windows PC configuration software
Improved easy to use HMI
Jumperless input configuration
Auto-hardware recognition
Faster communication speeds
More security options
Backward compatible panel cut out, housing and terminal wiring capability
The 4170+ single loop controller is part of the Plus series range and has 3-point stepping control designed specifically for open loop, valve motor drive (VMD) applications. The 4170+ incorporates advanced tuning algorithms, with selectable pre-tune and self-tuning for easier setup. The self-tune also reduces output activity to an absolute minimum without compromising control quality, thereby reducing wear and tear on mechanical components such as valves, contactors and relays. In test, these controls have cut down valve oscillation from 30 to 40 times a minute to just a few. Pre-tune plus self-tuning has also been shown to get on control up to 3 times faster. In addition to the VMD outputs, further output options exist which can be designated as outputs for alarms, 24 VDC transmitter power supply, retransmit process value or setpoint.
Features :
3-Point Stepping valve control
Valve position indication
Jumperless configuration
Auto or Manual Tuning
Process and loop alarms
Remote/dual setpoint options
Dual 4-digit LED displays
Universal Input for Thermocouple, RTD, DC, linear mA/V/mV, user selectable
Up to 4 outputs; relay, DC linear, SSR driver, Triac, Transmitter Power Supply
The West 6100+ is part of the Plus Series of controllers that take flexibility and ease of use to new levels. The product benefits from having more versatile features and user-friendly functionalities such as remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumperless and auto-hardware configuration, and 24VDC transmitter power supply. It has been designed to incorporate improvements, save users’ time (as much as 50% on product set-up), reduce inventory stock and virtually eliminate the likelihood of operator errors. The 6100+ results in providing a product which surpasses competitive offerings in terms of ease of use, delivery and value for money.
Features :
Plug-in output modules allow installing just the functions needed
Expanded user-selectable operator modes
User-selectable plug-and-play output cards
Process and loop alarms
Adjustable hysteresis
Optional analogue Remote Setpoint Input
Dual setpoints with optional remote selection
Improved Windows PC configuration software
Improved easy to use HMI
Jumperless input configuration
Auto-hardware recognition
Faster communication speeds
More security options
Backward compatible panel cut out, housing and terminal wiring capability
The 6170+ single loop controller is part of the Plus series range and has 3-point stepping control designed specifically for open loop, valve motor drive (VMD) applications. The 6170+ incorporates advanced tuning algorithms, with selectable pre-tune and self-tuning for easier setup. The self-tune also reduces output activity to an absolute minimum without compromising control quality, thereby reducing wear and tear on mechanical components such as valves, contactors and relays. In test, these controls have cut down valve oscillation from 30 to 40 times a minute to just a few. Pre-tune plus self-tuning has also been shown to get on control up to 3 times faster. In addition to the VMD outputs, further output options exist which can be designated as outputs for alarms, 24 VDC transmitter power supply, retransmit process value or setpoint.
Features :
3-Point Stepping valve control
Valve position indication
Jumperless configuration
Auto or Manual Tuning
Process and loop alarms
Remote/dual setpoint options
Dual 4-digit LED displays
Universal Input for Thermocouple, RTD, DC, linear mA/V/mV, user selectable
Up to 4 outputs; relay, DC linear, SSR driver, Triac, Transmitter Power Supply
The 6700+ limit controller is a member of the P series family. The instrument provides a latched relay output which is activated when process value either exceeds or falls below the a pre-set limit level, providing a fail-safe cut off which has to then be reset before the process can continue. The LED indication shows when limits have been exceeded and when the relay is latched out. With a full range of universal sensor input options the 6700+ provides a valuable control 'watchdog ' for most systems.
Features :
5A Latching Limit Relay as standard
Easy to use HMI
Configuration via PC/Customisable operator menu
Auto-hardware detect/set-up
Modbus communications
Jumperless configuration
Process alarms
Optional digital input and remote reset
Optional 10V SSR driver output
Backward compatible panel cutout, housing and terminal wiring capability
The West 8100+ is part of the Plus Series of controllers that take flexibility and ease of use to new levels. The product benefits from having more versatile features and user-friendly functionalities such as remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumperless and auto-hardware configuration, and 24VDC transmitter power supply. It has been designed to incorporate improvements, save users’ time (as much as 50% on product set-up), reduce inventory stock and virtually eliminate the likelihood of operator errors. The 8100+ results in providing a product which surpasses competitive offerings in terms of ease of use, delivery and value for money.
Features :
Plug-in output modules allow installing just the functions needed
Expanded user-selectable operator modes
User-selectable plug-and-play output cards
Process and loop alarms
Adjustable hysteresis
Dual setpoints with optional remote selection
Optional analogue Remote Setpoint Input
Improved Windows PC configuration software
Improved easy to use HMI
Jumperless input configuration
Auto-hardware recognition
Faster communication speeds
More security options
Backward compatible panel cut out, housing and terminal wiring capability
The 8170+ single loop controller is part of the Plus series range and has 3-point stepping control designed specifically for open loop, valve motor drive (VMD) applications. The 8170+ incorporates advanced tuning algorithms, with selectable pre-tune and self-tuning for easier setup. The self-tune also reduces output activity to an absolute minimum without compromising control quality, thereby reducing wear and tear on mechanical components such as valves, contactors and relays. In test, these controls have cut down valve oscillation from 30 to 40 times a minute to just a few. Pre-tune plus self-tuning has also been shown to get on control up to 3 times faster. In addition to the VMD outputs, further output options exist which can be designated as outputs for alarms, 24 VDC transmitter power supply, retransmit process value or setpoint.
Features :
3-Point Stepping valve control
Valve position indication
Jumperless configuration
Auto or Manual Tuning
Process and loop alarms
Remote/dual setpoint options
Dual 4-digit LED displays
Universal Input for Thermocouple, RTD, DC, linear mA/V/mV, user selectable
Up to 4 outputs; relay, DC linear, SSR driver, Triac, Transmitter Power Supply
