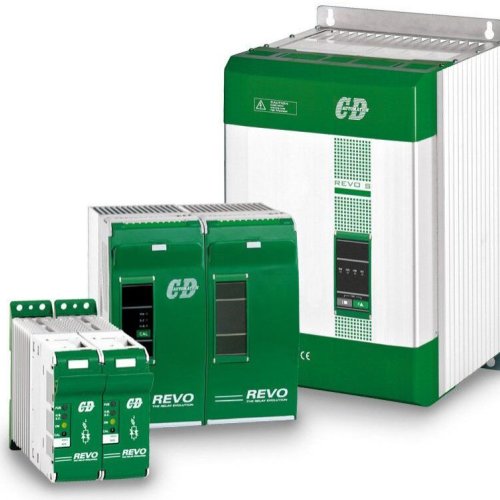

Revo S Three Phase Static Relay

Link Copied
Business Type Manufacturer, Exporter, Supplier
Application Industrial
Certification CE Certified
Voltage 220V
Click to view more

Product Details

Phase Type
Three Phase
Frequency
50Hz
Warranty
1Year
Country of Origin
India

Details :

  • REVO S 2PH is a three phases static relay suitable for driving loads with star connection without neutral or delta, on two phases. The unit has been designed to save space and work.
  • Current range – 30A, 35A, 40A, 60A, 75A, 90A, 120A, 150A, 180A, 210A, 300A, 400A, 450A, 500A, 600A, 700A, 800A
  • Voltage range 480V, 600V and 690V (starting from 60A)
  • Fully isolated from the power
  • Zero crossing firing mode (ZC) or Burst Firing (4, 8 or 16 cycles selectable)
  • Logic input signal 4 to 30Vdc typical (SSR) plus 4-20mA or 0-10Vdc Linear input as an option
  • Constant current drain, independent of supply voltage with SSR input
  • Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
  • Side by side mounting
  • Special design Heatsink with high dissipation value
  • IP20 protection
  • Complies with EMC, EAC, cULus® 508 Listed and cUL® listed up to 700A as an option. UL® listed for 800A as an option.

Yes! I am interested

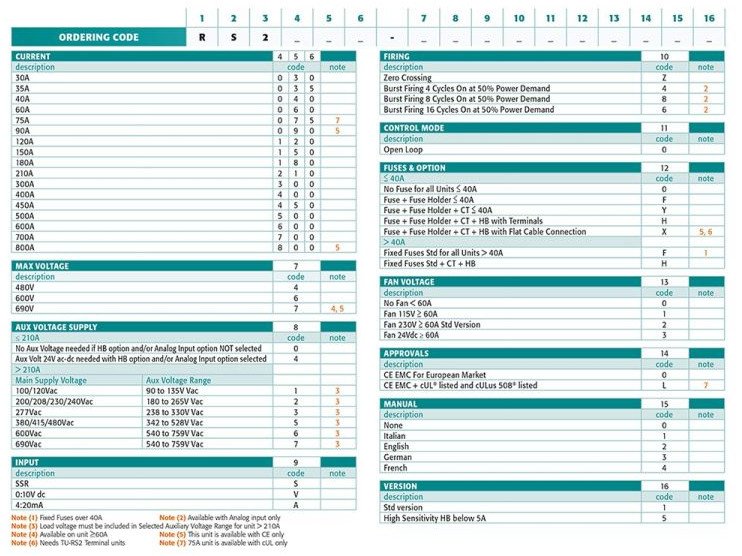

Order Code

Order Code
