Product Details
Operating Temperature
-5 to 80ºC
Slope
59 +3 mV (95-105%) at 25ºC
Zero Point
pH 7
Asymmetry Potential
0+25 mV
Response Time
<10 sec for 95% response from pH 7.00 to pH 4.01
Stability
<3 mV drift/24 hours in pH7 buffer
Membrane Glass
Green
Shaft Length
120 mm

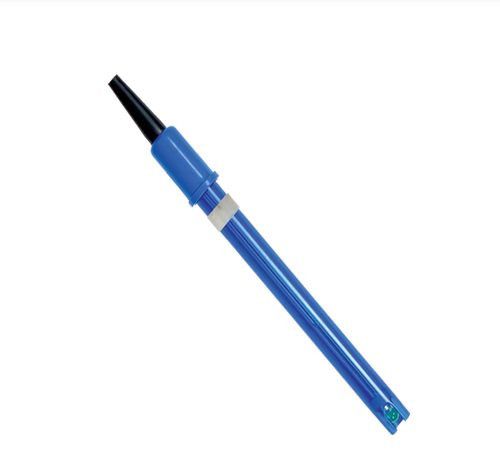

Plastic Body Electrode (KCL filled) This is 5-point pH Electrode, there is a special membrane glass & reference system that provides faster response, superior measurement stability & reproducible result.
Benefits :
- KCL filled unbreakable Electrode.
- Stable reading to 0.02 pH in less than 15 seconds.
- pH Electrode with special membrane glass suitable for 5-point calibration including
- Low (1.68) & High (12.45) pH value buffers.
- Membrane glass is green which covers full range i.e. 1.68 to 12.45 pH (Green membrane glass for fast response).
- Quick response & Low impedance.
- The electrode is equipped with a single/Double junction.
- The electrode diaphragm is equipped with two ceramic junctions.
- Built in Temp. Comp. (pt100/ pt1000/ NTC).
- Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
- Suitable/ compatible with mostly all make analysers.
- Supplied with storage bottle for longer life.
