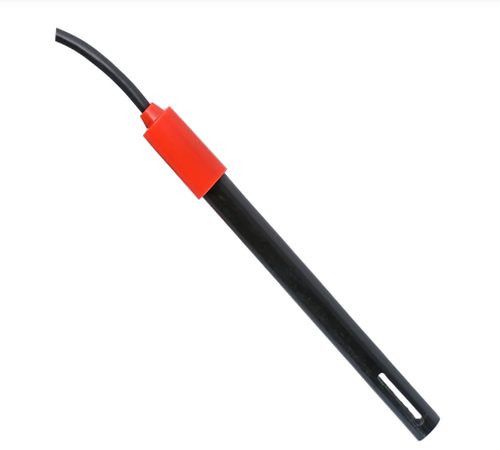

TCP-01 Conductivity Cell Electrode

These Plastic-body, Conductivity electrode/cell is designed to conductivity testing application for laboratory and field use. Plastic-body conductivity cells are durable and rugged, making them ideal for field measurements. Each type of conductivity cell has two models with k= 0.1 cm-1 and k=1.0 cm-1 cell constants. When selecting a conductivity cell, check the expected conductivity of the sample and then look at the cell constants of conductivity cells. Choose a conductivity cell that covers the expected sample conductivity. The higher the conductivity value of sample, the higher the cell constant required. A conductivity cell with k=1.0 cm-1 cell constant is the most commonly used because it measures low to high conductivity.

Benefits :

• Conductivity Cell covers wide range uS to mS.
• Stable & quick response.
• Intended for laboratory and field use.
• Plastic-body conductivity cells are durable and rugged, making them ideal for field measurements.
• Typically, a low conductivity solution is measured with a low cell having a k=0.1 cm-1 cell constant to prevent absorption of carbon dioxide (CO2) from air, which can affect the conductivity value.
• A high conductivity solution is measured with a high cell having a k=1.0 cm-1 cell constant
• Long life, easy cleaning to avoid contamination of the electrode to ensure correct results.
• Available with BNC, Lugs Connector.
• Suitable/ compatible with mostly all make Meters/ Analysers.
